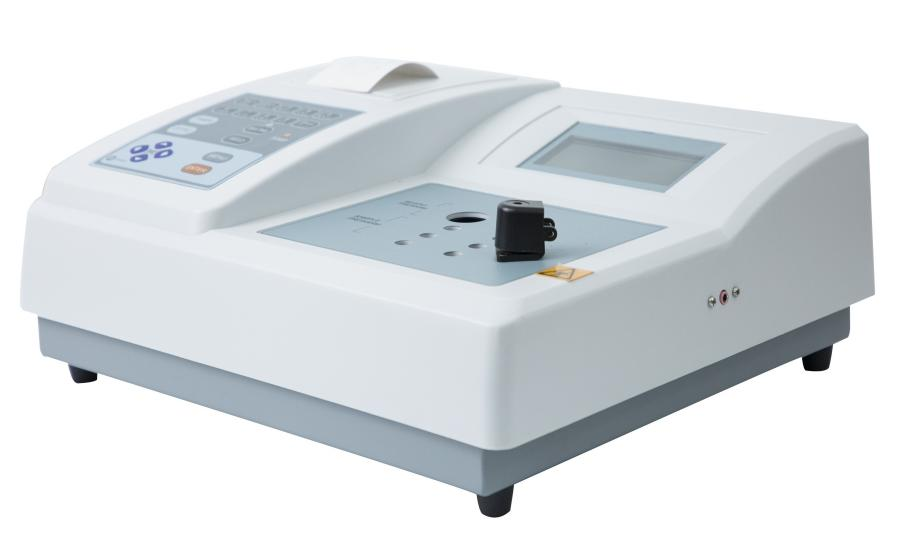

Coagulation Analyzer AR-5001
Features
- Advanced scattered light principle and percentage analysis ensure accurate results.
- Low reagent consumption less than 20uL, open reagent.
- Special testing cup location system, adding sample bracket
- Optional PT Derived method for testing fibrinogen, decease the dosage of reagent
- Advanced optical light matching system ensure precision result.
- 240* 128 large LCD display.
- Memory for 10.000 testing result
- Internal thermal-sensitive printer
- Electronically-linked pipette optional.
- Perform all routine tests such as PT. APTT. TT Fibrinogen and clotting factors
- RS232 interface, PC connecting for management software
Technical Specifications
PARAMETER | SPECIFICATION |
Testing channels | 1 channel |
Sample pre-warming position | 6 positions |
Reagent pre-warming position | 2 positions |
Software timer | 1 |
Test wavelength | 470nm |
Sample consume | 20uL-40ul |
Reagent consume | 20uL-40uL |
Temp control precision | 37±0.3°C |
Repeatability | Cv < 2% |
Coincidence indicator | ≤3% |
Momery | 10000 test result |
Notation of Result | S, %, PTR, INR, g/L |
Operation language | English |
Power supply | 220VAC±15% 50-60Hz |
Temperature | 15°C-30°C wet≤90% |
Packing size/G.W | 370mm(L)×370mm(W)×120mm(H),8Kg |
Usual Test List
Prothrombin PT
Activated Partical Thromboplastintime APTT
Thrombin Time TT
Fibrinogen FIB
RT, VT,VIII, IX,XI, XII,II, V, VII, X, PS, PC, Xa,etc
