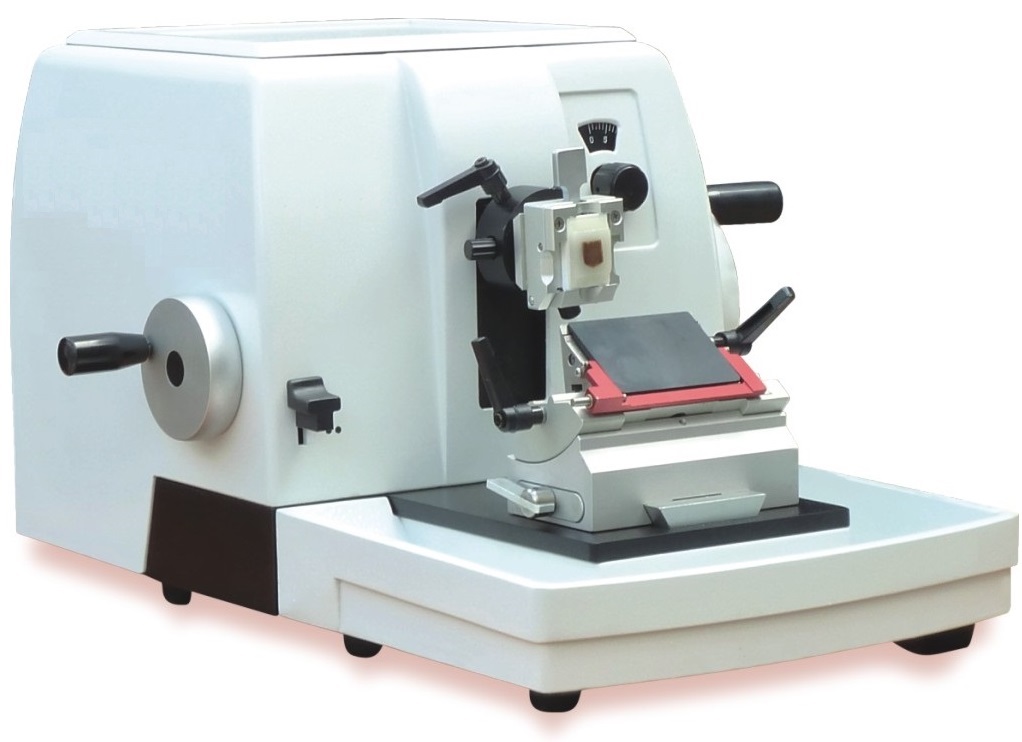

AM-2268 Manual Rotary Microtome

DESCRIPTION:

AM-2268 microtome is new-developed model, it offers features different from others. This machine adopts advanced guide rail, high-precision lead screws, retraction function, section and trimming mode. This model has professional design, secure instruction, and high-precision, stable performance. It’s perfectly suited for those who expect precision sectioning.

Features

-Ergonomically conception of devise, no feeling of tire for routine operation

-Good section result whether by use of Standard Steel Knife or Disposable Blade

-Specimen clamp positioned at 8 X/Y precision orientation system

-Hand wheel system allows the hand wheel locked at any position

-Specimen retraction function (this function can be shut), Cutting and trimming modes

-Course feed hand wheel systems, closer to user to protect fatigue-free section

-Exact zero position precise orientation systems, easy to operate

-Red Knife guard to avoid any damage to user, and easy to change disposable blade

-Blade holder can be moved sidewise, no need to move blade

-An integrated storage tray (not supplied with basic instrument) ensures that ancillary tools are on hand at all times

-Large Waste tray, easy to clean and unload

Technical Specifications

-Section thickness range:0~60μm

-Setting value:

0~20μm: increment 1μm

20~60μm: increment 5μm

-Minimum Setting value: 1μm

-Precision Error: ±5％

-Maximum Specimen Size: 60x50mm

-Trimming Setting Mode: 15μm or 35μm

-Specimen Retraction Range: 90μm

-Specimen retraction range of 90μm can be shut off

-Object Feed: 30mm, Vertical Stroke: 70mm

-Specimen Orientation System: 8 X/Y

-Dimension: 570mmx500mmx300mm

-Net Weight: 33kg
