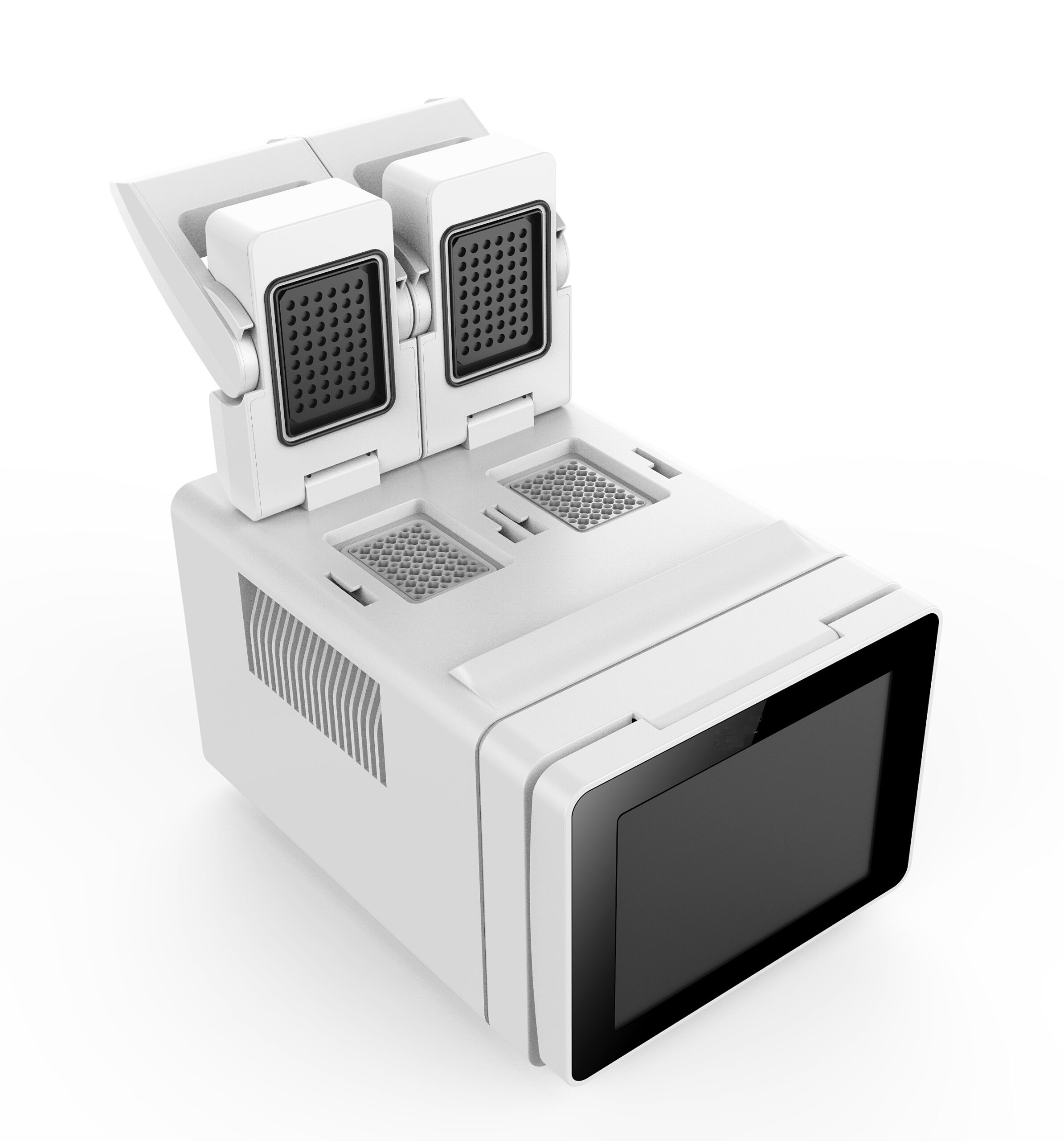

Touch Screen Multi-block Thermal Cycler T20
Specification
Model | T20 |
Sample Block | 2*48wells*0.2ml Easily Interchange the TalentGene series without tools |
Tube Optional | 0.2ml PCR tubes, 8 stripes |
Peltier Technology | New generation peltier technology, allow 1,000,000 cycles |
Display | 10” Full Color Touch Screen with adjustable angle, graphically protocols run edit and running status |
Language | English |
Communications | 2 USB and LAN |
Temperature | |
Block Temperature Range | 0℃~105℃ |
Max. Heating Rate | 7.5℃/s |
Max. Cooling Rate | 6℃/s |
Temperature Uniformity | ≤±0.2℃ (at 90℃) |
Temperature Accuracy | ≤±0.2℃ (at 90℃) |
Display Resolution | 0.1℃ |
Ramping Rate Adjustable | Yes |
Mode of Temperature Control | Sim-tube & Block |
Gradient | |
Gradient Accuracy | ≤±0.1℃ (at 90℃) |
Column Uniformity | ≤±0.2℃ (at 90℃) |
Gradient Range | 30℃~105℃ |
Temp. Differential Range | 1~25℃ |
Gradient Capability | Each individual block has 8 gradient temperatures |
Heat Lid | |
Lid Temperature Range | 30℃~112℃ |
Open Method | Innovative TOP-OPEN technology, with excess even pressure of heat lid |
Auto Shut-Off | Yes,lid will shut off automatically when the block temperature below set temperature |
Software | |
Max. number of programs | Max. 15,000 programs onboard, unlimited storage of protocols with USB flash drive |
Max. Step | 30 Steps, multiple nesting cycle available |
Max. Cycle | 100 Typical Cycles (multiple nesting allows 10,000 cycles) |
Time Increment/Decrement | 1-120 sec, available for Long PCR |
Temperature Increment/Decrement | 0.1-10.0℃, available for Touchdown PCR |
Auto Pause / Auto Restart | Yes |
Multi-user log in | Password-based authentication protect personal PCR protocols |
Hold at 4℃ | Yes,a below ambient temerature incubation allow PCR results storage overnight |
Program wizard | Yes, template PCR protocol allow to create a new one with only a few clicks |
Running Report | Yes, provide full review after protocol running |
PC Connection | Yes |
Other Features | |
Power | Global switching power supply: 100V ~ 240V, 50–60Hz Max. 900W |
Dimension(L×W×H) | 375×270×277mm |
Net Weight | 13kgs |
