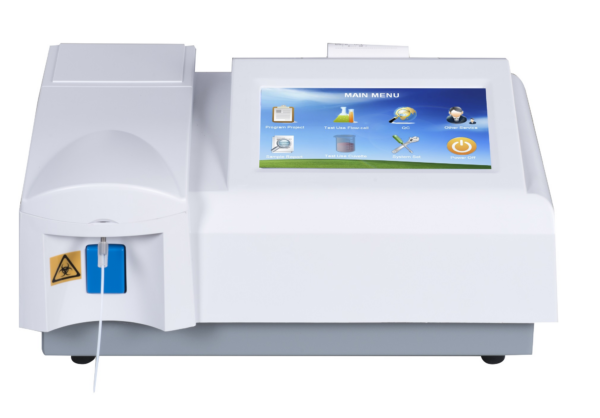

AR-3002B Chemistry Analyzer
Features
- 7 inch Color LCD , Touch screen
- Flow cell and Cuvette test mode compatible
- Real time curve showing
- 7 wavelength ,90 test item pre-programmed
- Memory for 10,000 sample results
- Light source hibernate function making lamp life longer
- RS232 interface, PC connecting
Technical Specifications
PARAMETER | SPECIFICATION |
Test mode | Kinetic, End point, Two point, Absorbance |
Wavelength | 7 standard filters, 340, 405, 492, 510, 546, 578, 630 nm, 1 free position |
Wavelength precision | ±2 nm, width ≤ 10nm |
Absorbance range | 0~4.500 Abs |
Absorbance precision | outside 0.0001 Abs , inside 0.00001 Abs |
carry over | < 1% |
Repeatability CV | < 1% |
Incubator | 37°C、30°C、25°C、Precision : ±0.1°C |
Sample volume | 0~3000uL (≥500uL recommend) |
Data Storage | ≥10000 |
Quality control curve | X-bar、SD、CV%、L-J quality control curve for every test item |
Flow cell | 32 uL quartz glass, 10 mm |
Lamp | Philips 6V 10W Halogen Lamp with long life |
Screen | 7 inch color LCD |
CPU | ARM series high speed micro CPU |
Printer | Internal thermal sensitive printer |
Interface | RS-232 |
Work Environment | Temperature 0°C ~ 40°C, Humidity: ≤80% |
Power supply | 100~240VAC,50-60Hz,100VA |
Dimension | 340(L)*270(W)*160(H) |
Weight | 5 kg |
Usual test list
Liver function | ALT AST ALP T-BIL D-BIL TP ALB TTT CHE Nh3 |
Renal function | BUN CRE UA URE CO2-CP γ-GT |
Lipids | T-CHO TG HDL-C LDL-C |
Cardiac function | CK CK-MB LDH |
Immune proteins | IGA IGG IGM C3 |
Others | GLU HGB AMS |
