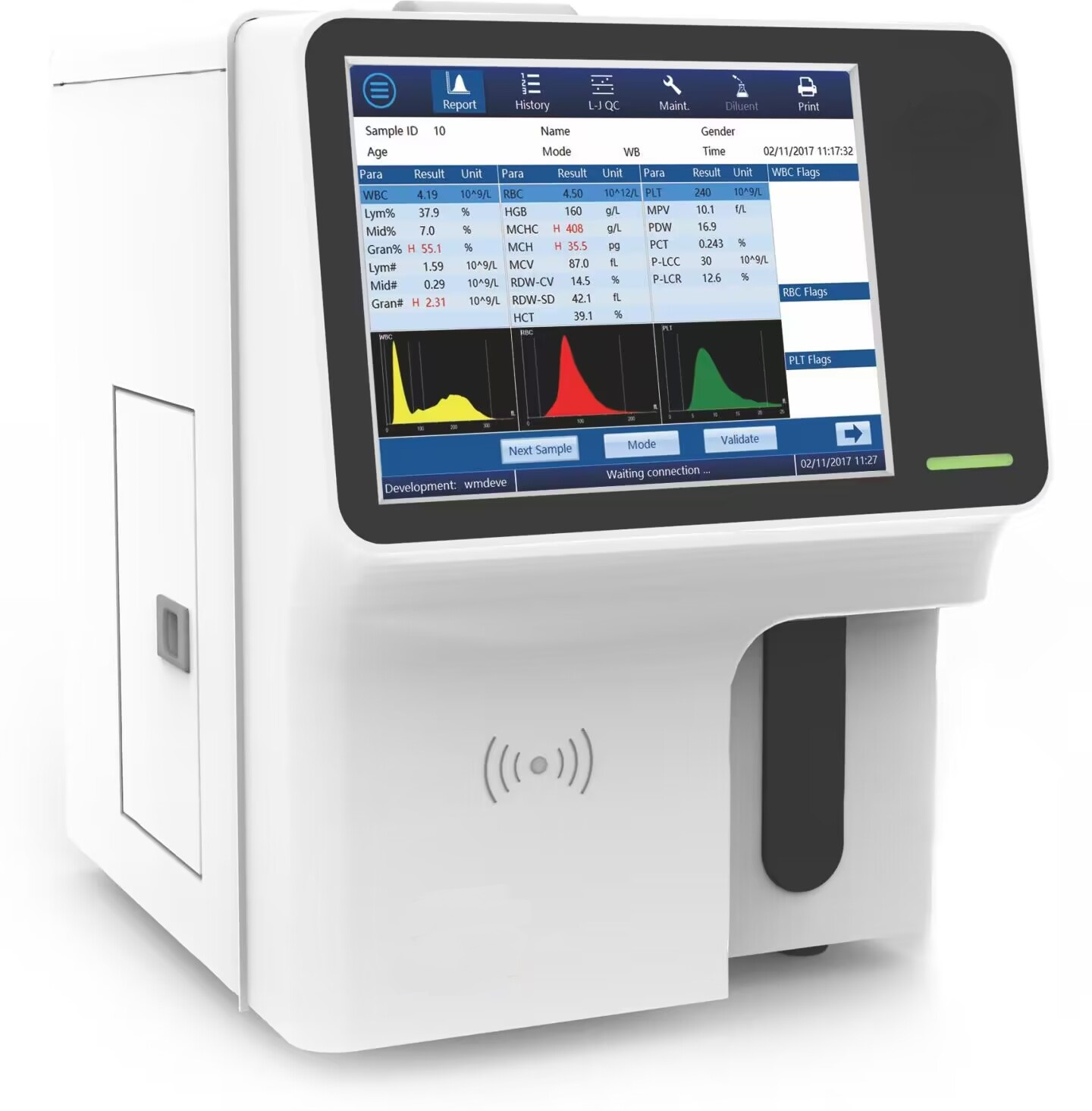

Hematology Analyzer AR-310
Features
- Accurate measurement for low value PLT
- Low running cost.
- 10.4 inch LCD
- Easy to use
Technical Specifications
PARAMETER | SPECIFICATION | |||
Principles | Impedance method
Cyanide free colorimetric method |
|||
Parameters | 21 Reportable parameters:
WBC, Lym#, Mid#, Gran#, Lym%, Mid%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW- SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC 3 Histograms (WBC, RBC, PLT) |
|||
Test Mode | Venous whole blood, Capillary whole blood and Prediluted | |||
Throughput | 60 tests/hour | |||
Sample Volume | ≤10ul | |||
Data Memory | Up to 100,000 results (including histograms and patient information) | |||
Display | 10.4 inch touch screen | |||
Printout | Can connect to external printer | |||
Performance | Parameter | Linearity Range | Carry Over | CV |
WBC | 0-300*109/L | ≤0.5% | ≤2.0% | |
RBC | 0-8*1012/L | ≤0.5% | ≤1.5% | |
HGB | 0-250g/L | ≤0.5% | ≤1.5% | |
PLT | 0-3000×109/L | ≤1.0% | ≤4.0% | |
Interface | 4 USB, 1 LAN, 1 RS-232
Support LIS connection RF card for reagent cloing system(optional) |
|||
Size I Weight | L * W * H = 411*3 15*416(mm)
Weight: 26kg |
|||
Working Environment | Power: a.c.100-240V, 50/60Hz
Temperature: 10-30℃ Humidity: 20-85% Air pressure: 70-106KPa Working Latitude: : ≤3500m |
