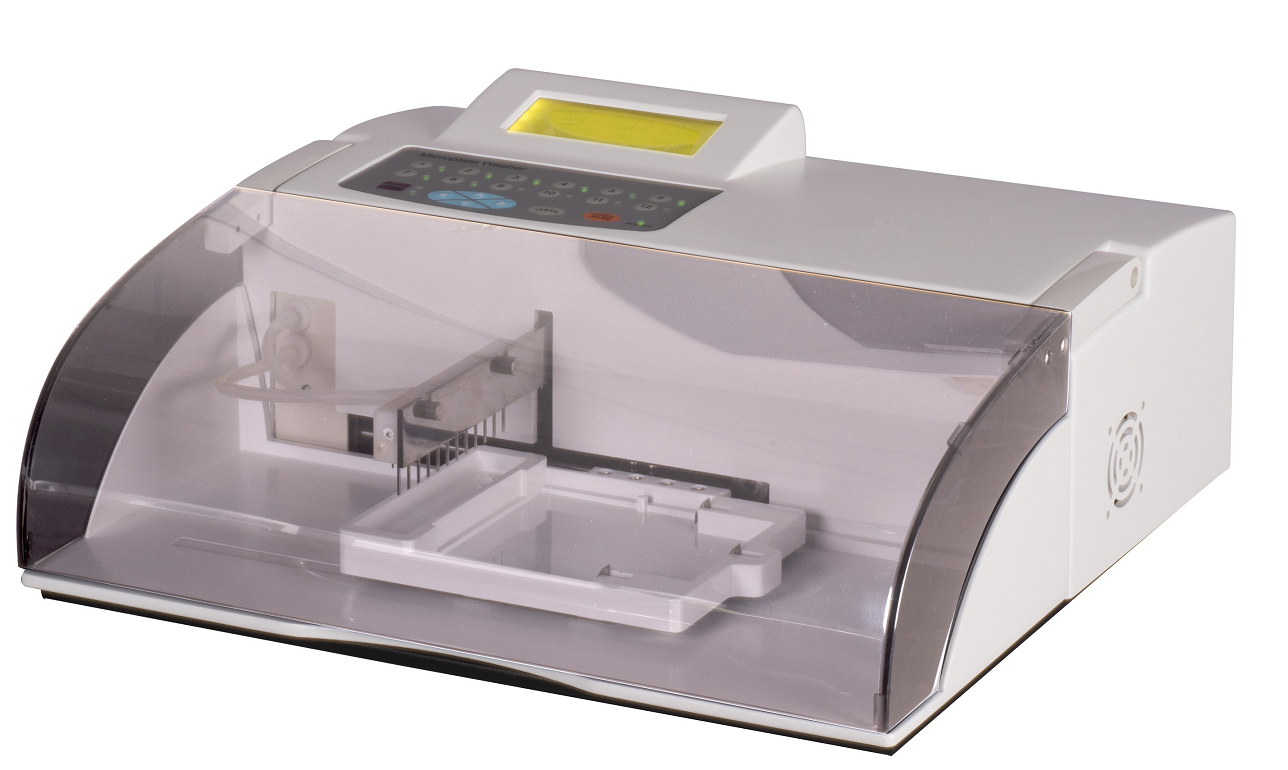

Microplate Washer AR-2000A
Features
- Interchangeable manifolds for 8- and 12-well strips
- One or more strips of ELISA Plate washing keyboard choice directly
- Minimal residual volume (<1µL/well)
- Dispense precision CV<2%
- Detachable ELISA Plate pallet, convenient for the pallet clearing and sterilization
- Cleaning head 5-locations location adjusted,
- Shaking or soak time programmed.
- Automatic waste and lotion and distilled water liquid warning
Technical Specifications
PARAMETER | SPECIFICATION |
Micro-plate Types | 48 / 96-well U-/V- / Flat-bottom plates or strips |
Residual | ≤ 1μl / well |
Dispense volume | 50μl-950μl, adjustable |
Washing Cycles | 1-99, optional |
Washing Mode | 1-12, rows and ranks select-able |
Soaking Time | 0-999s, adjustable |
Shaking Time | 0-999s, adjustable |
Display | Large LCD |
Channel | 1 channels for washing liquid, 1 channel for waste liquid |
Memory | Up to 100 programs can be stored |
Interface | RS232 |
Power Supply | 220\110VAC ± 10%, 50\60Hz |
Temperature | 5°C – 30°C wet ≤ 90% |
Dimension/N.W | 430mm (L) × 380mm (W) × 120mm (H)/11KGS |
Streamlined Washing Efficiency:
- Automated Washing Cycles: Eliminate manual washing steps, saving valuable time and minimizing variability.
- Multiple Wash Protocols: Choose from pre-programmed protocols or customize settings for specific assay requirements, ensuring optimal washing efficiency.
- Adjustable Washing Parameters: Fine-tune parameters like dispense volume, aspiration pressure, and shaking intensity for optimized well cleaning and minimal sample loss.
Unwavering Precision and Consistency:
- Eight-Channel Wash Head: Ensures uniform washing across the entire microplate, minimizing well-to-well variability and contributing to reliable results.
- Integrated Aspiration System: Provides efficient and complete removal of wash solutions, minimizing background noise and improving assay sensitivity.
- Liquid Level Sensors: Prevent overflow and underfill incidents, safeguarding your valuable samples and reagents.
Tailored for Diverse ELISA Applications:
- Wide Range of Compatible Plates: Accommodates various microplate formats, including standard 96-well and 384-well plates, catering to diverse assay needs.
- User-Friendly Interface: Features an intuitive interface for easy programming and operation, simplifying workflow integration and user training.
- Compact Design: Saves valuable bench space while offering efficient washing capabilities, ideal for laboratories with limited space.
Investing in the AR-2000A Microplate Washer means:
- Enhanced Workflow Efficiency: Automate your ELISA washing steps, freeing up valuable time for other critical tasks and minimizing variability.
- Precise and Consistent Results: Achieve reliable data with uniform washing, efficient aspiration, and overflow prevention features.
- Versatility for Diverse Assays: Conduct various ELISA applications with compatible plate formats and customizable washing protocols.
- Space-Saving Design: Optimize your laboratory layout with a compact and efficient instrument.
