MEDICAL, In-Vitro Diagnostic, Microplate Reader/Washer
AR-2000B Microplate washer
Elevate your laboratory efficiency with the Microplate Washer AR-2000B. Engineered for precision and reliability, this washer ensures thorough cleaning of microplates for diverse assays. With advanced features and a user-friendly interface, it delivers dependable performance in laboratory settings. Simplify your workflow with the AR-2000B – your trusted solution for efficient microplate washing.

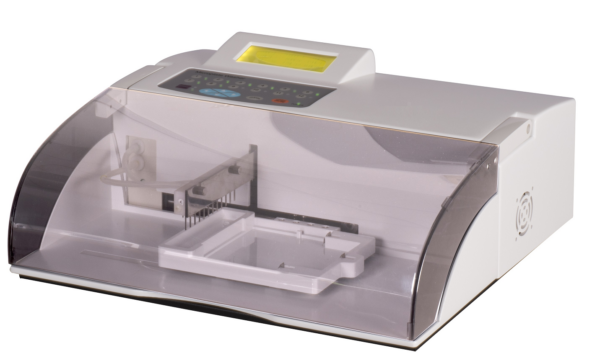

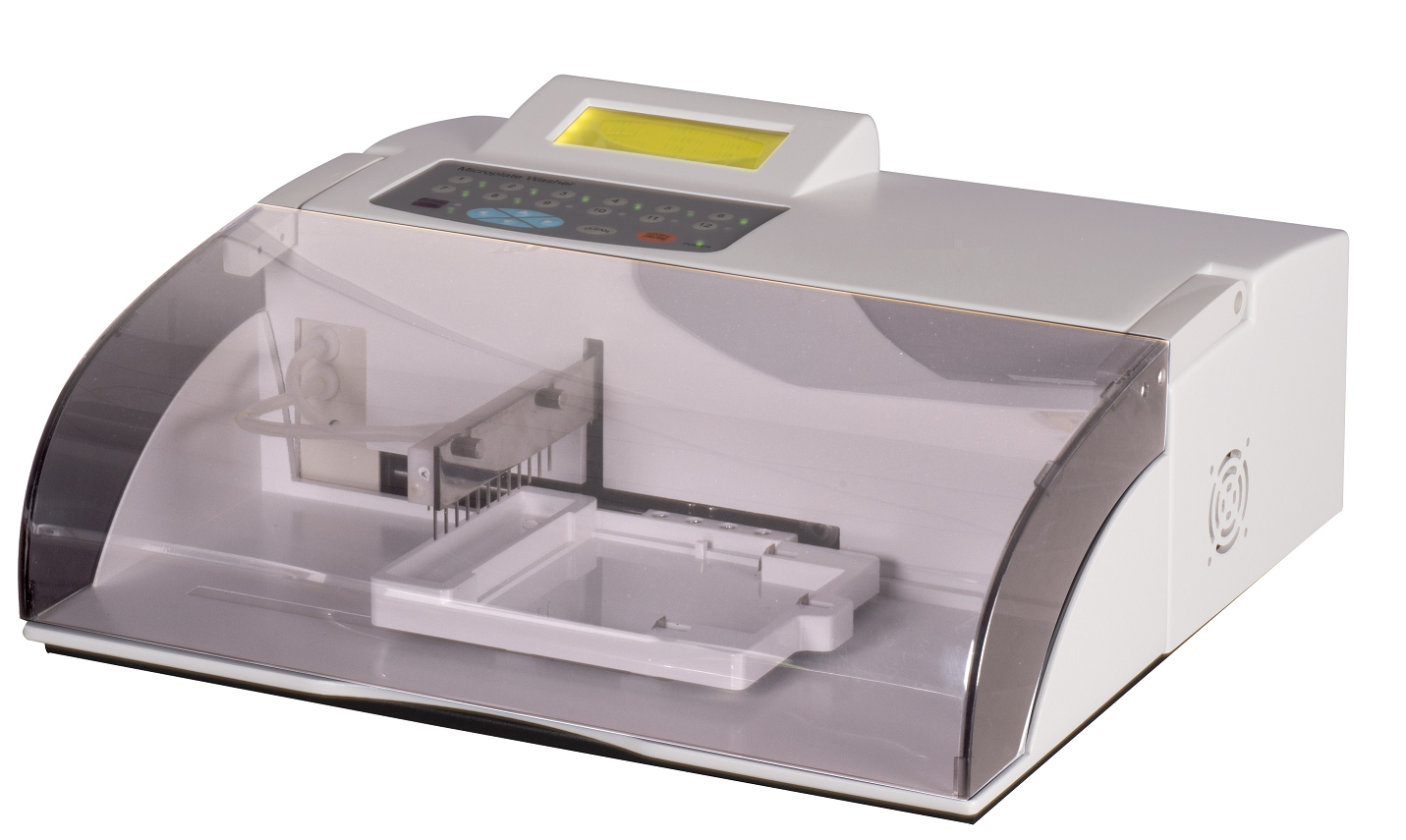

Microplate washer AR-2000B
Features
- Interchangeable manifolds for 8- and 12-well strips2
- One or more strips of ELISA Plate washing keyboard choice directly
- Minimal residual volume (<1μL/well)
- Dispenseprecision Cv<2%
- Detachable ELISA Plate pallet, convenient for the pallet clearing and sterilization
- Cleaning head 5-locations location adjusted,
- Shaking or soak time programmed.
- Automatic waste and lotion and distilled water liquid warning
- Built-in internal-temperature cyclic ELISA Plate pallet incubator(patent)
- temperature precision 37±0.3°C
Technical Specifications
PARAMETER | SPECIFICATION |
Micro-plate Types | 48 / 96-well U-/V- / Flat-bottom plates or strips |
Residual | ≤ 1μl / well |
Dispense volume | 50μl-950μl, adjustable |
Washing Cycles | 1-99, optional |
Washing Mode | 1-12, rows and ranks selectable |
Soaking Time | 0-999s, adjustable |
Shaking Time | 0-999s, adjustable |
Display | Large LCD |
Channel | 2 channels for washing liquid, 1 channel for waste liquid |
Memory | Up to 100 programs can be stored |
Interface | RS232 |
Power Supply | 220\110VAC ± 10%, 50\60Hz |
Temperature | 5°C – 30°C wet ≤ 90% |
Dimension/N.W | 430mm (L) × 380mm (W) × 120mm (H)/12KGS |
Unmatched Speed and Throughput:
- Ultra-Fast Washing Cycles: Process entire microplates in record time, significantly increasing laboratory productivity and enabling the analysis of larger sample sets.
- Parallel Washing Capability: Wash multiple microplates simultaneously, further maximizing throughput and streamlining workflows in high-volume testing environments.
- Automated Buffer Refilling and Waste Disposal: Minimizes manual intervention and downtime, allowing for continuous processing and uninterrupted operation.
Exceptional Washing Performance and Consistency:
- Innovative Manifold Design: Ensures uniform washing across all wells of the microplate, minimizing well-to-well variability and contributing to highly reliable results.
- Enhanced Washing Efficiency: Optimizes washing parameters for various plate types and assays, ensuring thorough cleaning and minimal sample loss.
- Multiple Washing Heads: Choose from different washing head options to cater to specific plate formats and washing requirements.
Tailored for Demanding ELISA Workloads:
- High Plate Capacity: Accommodates a large number of microplates, ideal for processing high volumes of samples in research and diagnostic settings.
- Flexible Programming Options: Create and save customized washing protocols for diverse assay needs, ensuring optimal performance for various ELISA applications.
- Integrated Data Management System: Provides comprehensive data logging and export capabilities for efficient record-keeping and analysis.
Investing in the AR-2000B High-Throughput Microplate Washer means:
- Revolutionizing ELISA Workflows: Experience exceptional speed, parallel processing, and automated processes to significantly boost laboratory productivity.
- Achieving Unwavering Data Quality: Gain confidence in your results with uniform washing, optimized efficiency, and customizable protocols.
- Addressing High-Volume Needs: Process large batches of samples efficiently with high plate capacity and flexible programming options.
- Streamlining Data Management: Simplify record-keeping and analysis with integrated data management features.
