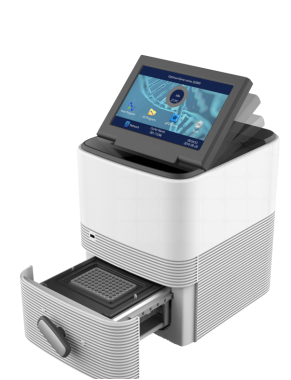

Real-Time PCR System Q2000
Features
- Top brand Peltier elements from MARLOW(U.S.A)adopted, ensure long life of 1,000,000 cycles and fast ramping rate up to 6℃/s.
- T-Optical™ technology, reduce background noise, improve fluorescence signal sensitivity and signal to noise ratio.
- The angle of display could be adjusted to the best view.
- 96 wells* 6 channels, simultaneous detection of wells, not in sequence.
- User could view PCR process and run PCR protocol through self-contained 10’’ TFT LCD and touch screen.
- Special designed optical system for PCR, avoiding more moving parts problems like overheat, wear and off center. Not optical fiber based, avoiding break and block.
- Long life LED lamps to excite fluorescence and detect with SSLP™ CCD imaging technology.
- Sample wells with temperature gradient function, convenient to optimize PCR conditions.
- The drawer design of sample block, makes it easier to pick and place PCR tubes & plates.
- The PCR analysis software could be upgrade for free.
Technical Specifications
Instrument Performance | |
Sample Block Capacity | 96 wells * 0.1ml |
Reaction Volume | 10-50ul(recommend 20ul) |
Tubes Option | Low profile, white or clear PCR tubes or strips or 96 well PCR plate, with optical flat cap |
Heating and Cooling Technology | New powerful Peltier Technology |
Control Methods | Operated via PC or self-contained touch screen on instrument |
Temperature | |
Block Temperature Range | 0℃~105℃ |
Max. Heating Rate | 6℃/s |
Max. Cooling Rate | 5℃/s |
Temperature Uniformity | ≤±0.2℃(at 90℃) |
Temperature Accuracy | ≤±0.1℃(10 seconds after reach 90℃) |
Display Resolution | 0.1℃ |
Heat Lid Temperature Range | 30℃~112℃ |
Temperature control Mode | Block & Calculated sample |
Gradient Range | 30℃~100℃ |
Temp. Differential Range | 1℃~30℃ |
Fluorescence Detection | |
Calibrated Dyes at Factory | |
Excitation | Long life LED lamps |
Detection | CCDs |
Channel 1 | FAM、SYBR GREEN |
Channel 2 | VIC、HEX、JOE、CY3、NED |
Channel 3 | ROX、TEXAS-RED |
Channel 4 | CY5 |
Channel 5 | CY5.5 |
Channel 6 | Reserved |
Fluorescence Excitation Range | 300 — 800nm |
Fluorescence Detection Range | 500 — 800nm |
Data Export Formats | Excel, TXT |
Dynamic Range | 1~1010 |
Sensitivity | ≥1 copy |
Fluorescence Detection | |
AC power supply | 100V ~ 240V, 50-60Hz |
Consumption | 600W |
Dimension (L×W×H) | 334×280×365mm |
Net Weight | 13KG |
Computer Operating Systems | Windows10、Windows7、Windows XP |
