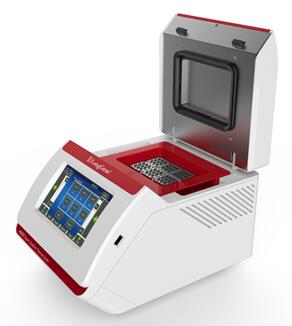

Super Gradient Thermal Cycler A600
Specification
Gradient Module | |
Block | 6*16wells*0.2 individual module, six different annealing temperatures could be set for each zone |
Tube Type | 0.2ml PCR tubes, 8/12 Strips, 96 wells PCR plate |
Peltier Technology | New Generation Peltier Technology |
Display | 7” Color Touch Screen, graphically display the realtime protocols and
running status |
Language | Full English |
Communications Ports | 2 USB and 1 LAN |
Venting System | Front air in and back air out,two cyclers can be placed side by side |
Temperature | ||
Block Temperature Range | 0℃~105℃ | |
Max. Heating Rate | 5.5℃/s | |
Max. Cooling Rate | 4.5℃/s | |
Temperature Uniformity | ≤±0.15℃ | |
Temperature Accuracy | ≤±0.10℃ | |
Display Resolution | 0.10℃ | |
Ramping Rate Adjustable | Yes | |
Mode of Temperature Control | Sim-tube & Block mode |
Gradient | |
Gradient Accuracy | ≤±0.15℃ |
Zone Uniformity | ≤±0.20℃ |
Gradient Range | 0℃~105℃ |
Temperature Differential Range | less than 25℃ between two adjacent zones |
Gradient Capability | 6-zone temperature can be set independently. better than
traditional gradient function |
Heat Lid | |
Height of Heat Lid | Steplessly Adjustable Lid, accommodates all kinds of PCR tubes,
strips and plates |
Lid Feature | Innovative “TOP-OPEN” technology, protection from over- pressure |
Heat Lid Temperature Range | 30℃~112℃ |
Auto Shut-Off | Yes |
Software | |
Max. No. of programs | Max. 15,000 programs onboard, unlimited storage of protocols
with USB flash drive |
Max. Step | 30 Steps, multiple nesting cycle available |
Max. Cycle | 100 Typical cycles, max. 60,000 nesting cycles |
Time Increment/Decrement | 1-120 sec, available for Long PCR & Touchdown PCR |
Temperature Increment/Decrement | 0.1-10.0℃, available for touchdown PCR |
Auto Pause / Auto Restart | Yes |
Multi-user log in | With password-based authentication prevents from view, copy
and alteration of protocols |
Tm calculator | Automatically calculate the melting and annealing temperature
with two primer sequences |
Hold at 4℃ | Yes, an Infinite incubation time at low temperature for overnight
working |
Program wizard | Yes, create PCR protocols with only a few clicks |
Running Report | Yes, Provide precise information for the whole experiment |
PC Connection | Yes,PC remote control to manage multl units across the
Newwork |
Other Features | |
Power | Universal AC input Switching Power Supply: 85V ~ 265V, 50-60Hz Max. 600W |
Dimension(L×W×H) | 362×256×255mm |
Net Weight | 7.3kgs |
